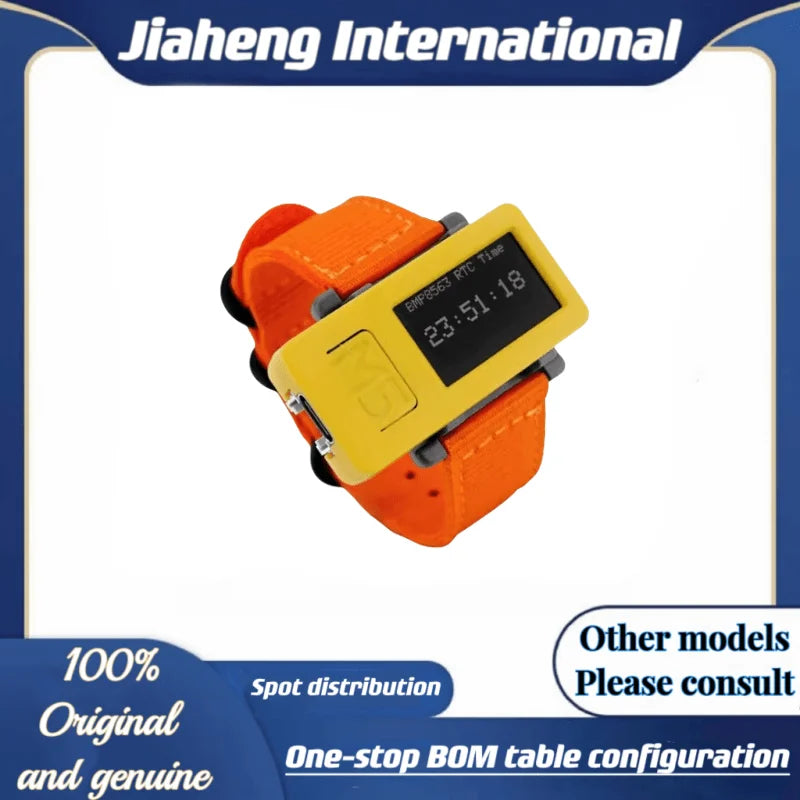

M5StickC PLUS2 with Watch Accessories ESP32-PICO-V3-02 Mini IoT Development Kit BLE and WiFi IoT Controller
M5StickC PLUS2 with Watch Accessories ESP32-PICO-V3-02 Mini IoT Development Kit BLE and WiFi IoT Controller
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: M5Stack,NoEnName_Null
Choice: yes
Hign concerned Chemical: None
Hign-concerned Chemical: None
Model Number: K016-H2,K016-H2
Origin: Mainland China,Mainland China
semi_Choice: yes
There is no doubt about the powerful capabilities of the M5StickC Plus2. As the second generation of M5StickC Plust, M5StickC Plus2 is equipped with a 240*135 color LCD screen, ESP32-PICO-V3-02 chip, MPU6886 6-axis IMU, SPM1423 digital microphone, BM8563 RTC chip, and IR emitter.
The HY2.0-4P interface at the bottom of the M5StickC Plus2 allows for connection to M5Stack's sensor series products, enabling customization of various functions. The 8P@2.54mm expansion interface on the top can be directly connected with M5Stack HAT series products, providing users with more development possibilities.
Power on
Wake up can be started by pressing "BUTTON C" for more than 2 seconds, or IRQ signal triggered by RTC regularly. After triggering the wake up signal, the hold(G4) pin needs to be set to a high level (1) in program initialization to maintain the power supply, otherwise the device will enter the shutdown state again.
Power off
When no USB external power supply is available, press BUTTON C for more than 6 seconds. Or when there is no USB external power supply, set HOLD(GPIO4)=0 in the program operation, that is, to achieve power off. When the USB is connected, press the "BUTTON C" button for more than 6 seconds to turn off the screen and enter the hibernation state, but not power off.
Features
* Customization Supports custom display
* 200mAh battery
* Light and portable

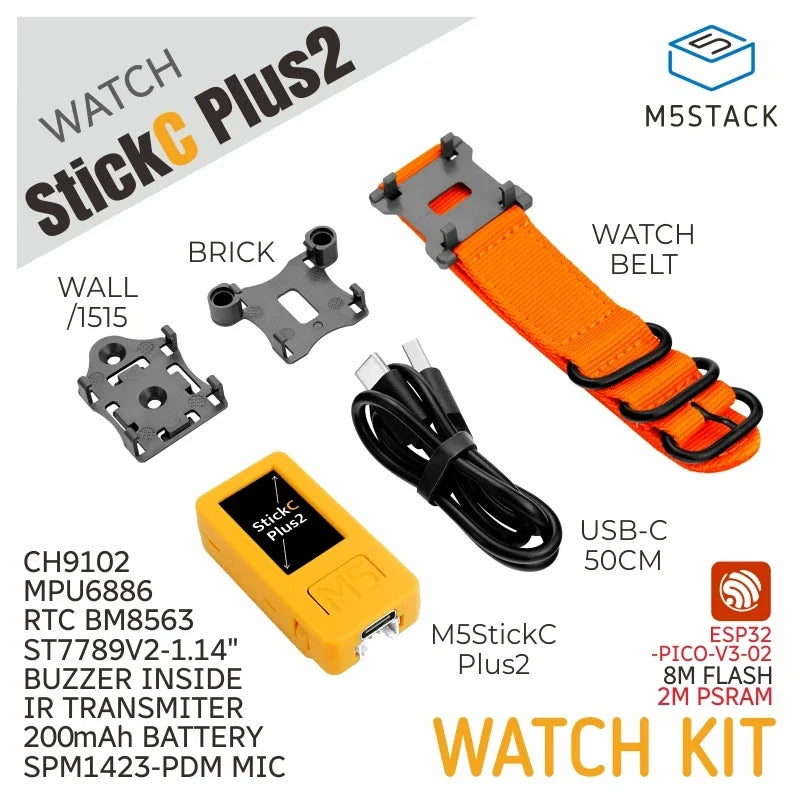

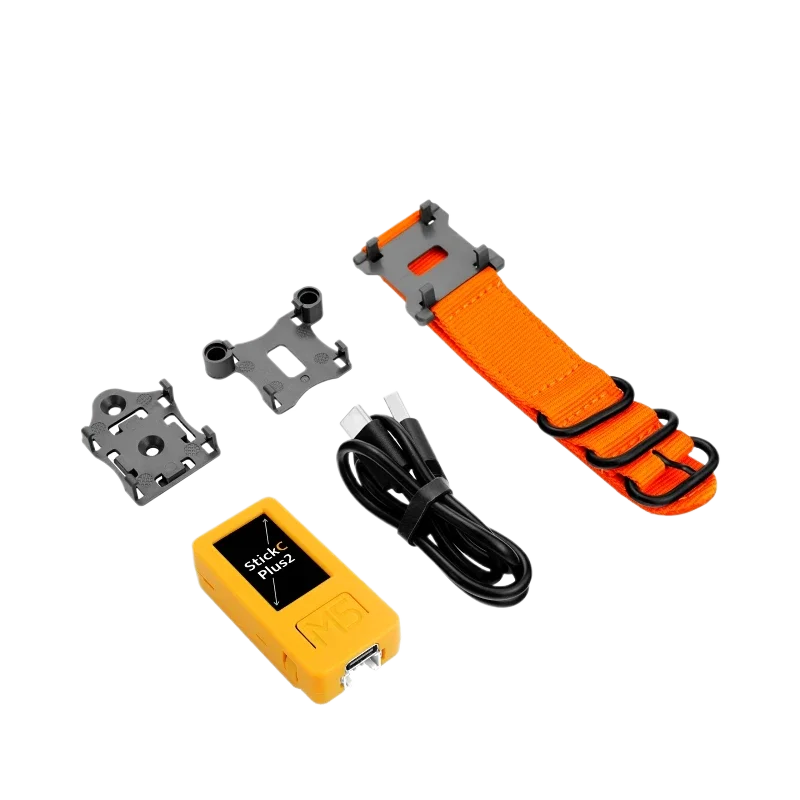

Includes
1x M5StickC PLUS2
1x LEGO adapter
1x Wall/1515
1x Watch band
1x Type-C USB(50cm)
Applications

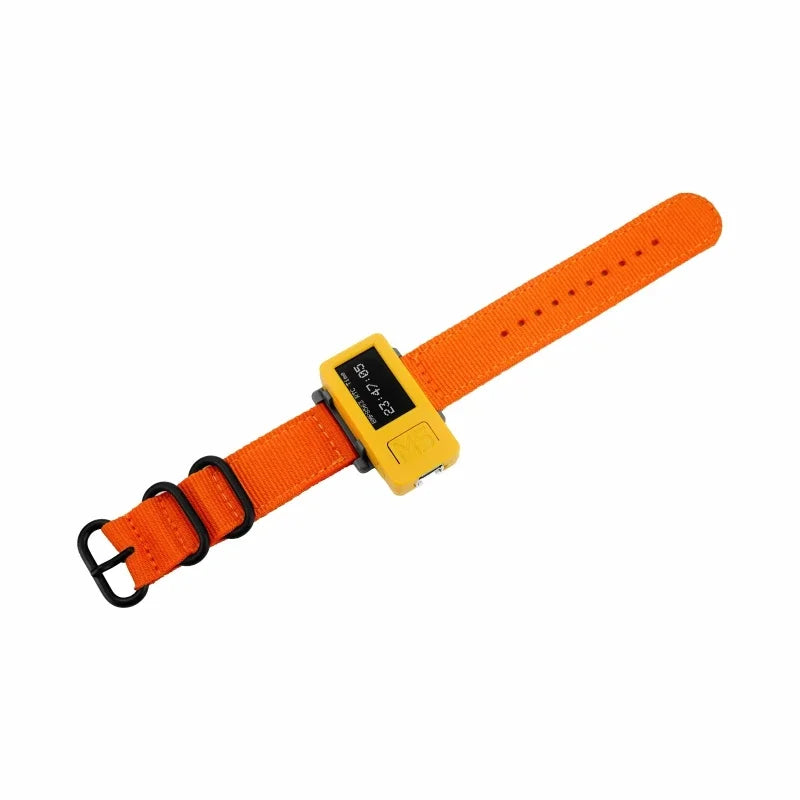

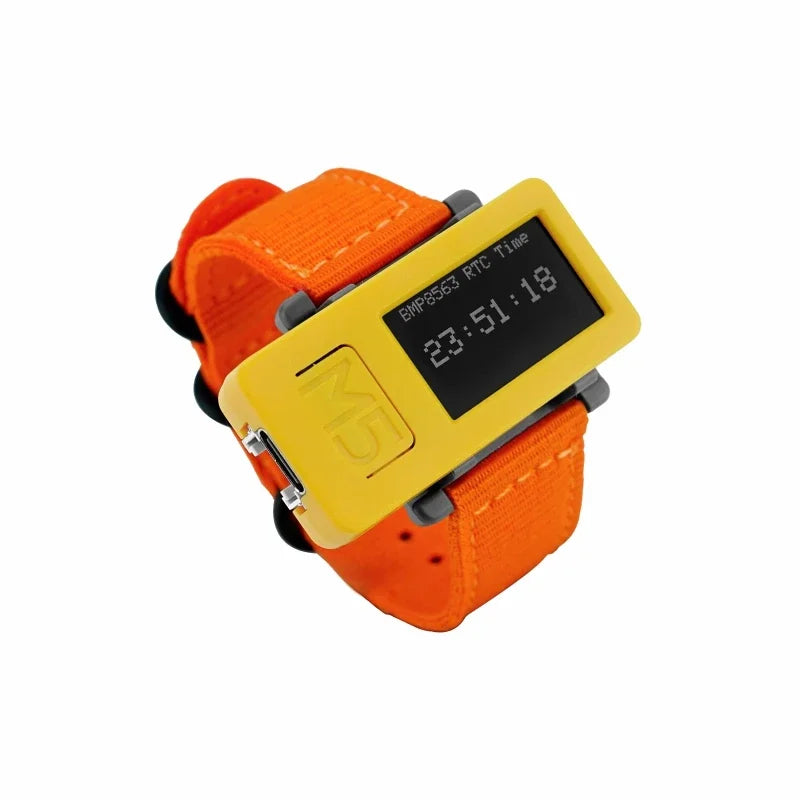

Smart Watch

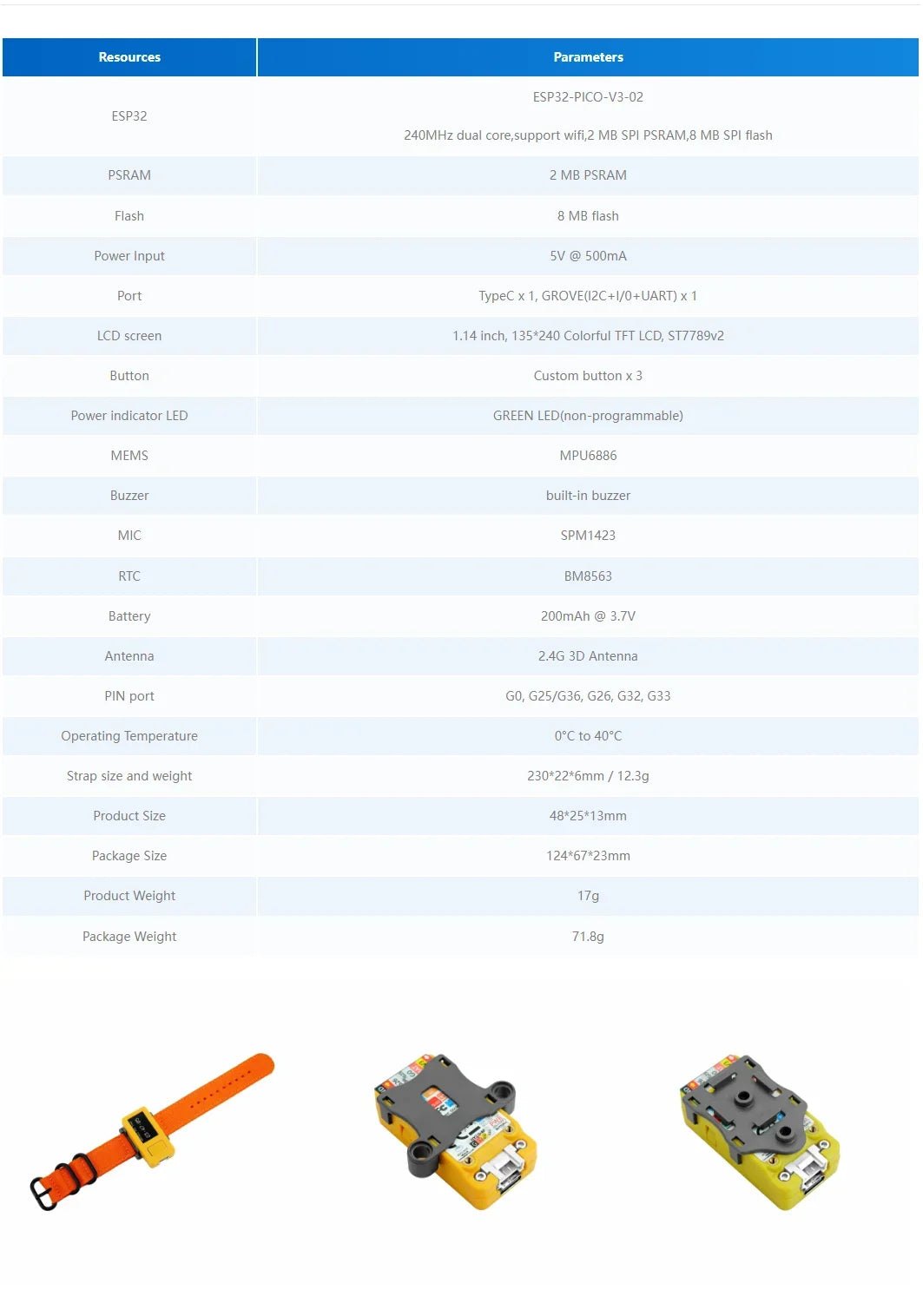

Specification

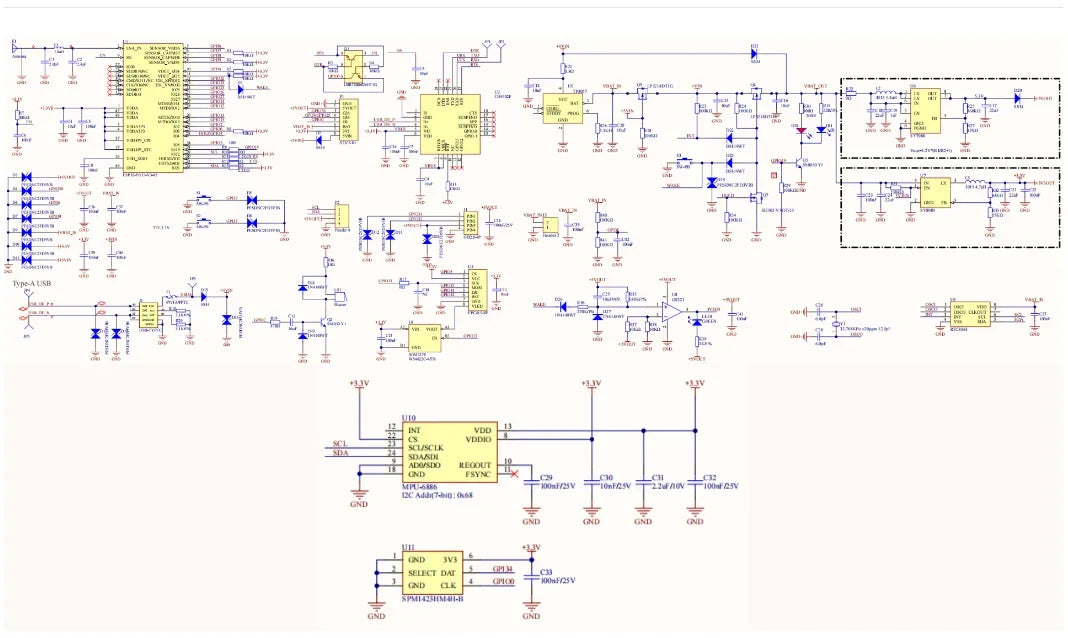

Schematic

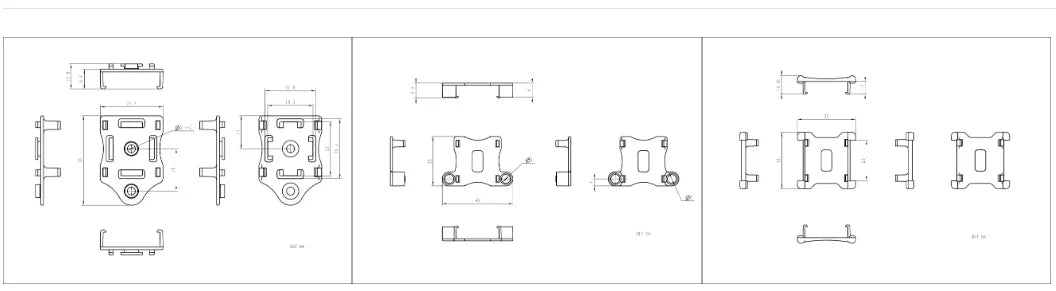

Module Size

Product Specifications:
- M5Stack official M5StickC PLUS2 with watch accessories
- Electronics Production Machinery Sub Category
- Keywords: M5Stack official M5StickC PLUS2 with watch accessories
- Specifications:
- Colorful LCD 240*135 Display
- ESP32-PICO-V3-02 Chip
- 6-Axis IMU MPU6886
- Microphone SPM1423
- BM8563 RTC Chip
- IR Emitter
- HY2.0-4P Interface
- 8P@2.54mm Expansion Interface
- 200mAh Battery
- Lightweight and Portable Design
- Includes M5StickC PLUS2, LEGO Compatible Adapter, Wall/1515 Mount, Wristband, USB Type-C Cable (50cm)
**Versatile and Powerful**.
The M5Stack official M5StickC PLUS2 with watch accessories is a versatile and powerful device that stands out in the Electronics Production Machinery subcategory. It is not just a time-telling device; it is a smartwatch accessory kit that offers a plethora of applications. With its colorful LCD 240*135 display, the M5StickC Plus2 provides a vibrant and clear visual experience. The inclusion of the ESP32-PICO-V3-02 chip ensures robust connectivity and performance, while the 6-axis IMU MPU6886 and BM8563 RTC chip contribute to its advanced sensing capabilities and timekeeping precision. The SPM1423 microphone and IR emitter add to the device's interactive features, making it a smart choice for various applications.
**Designed for Convenience and Flexibility**.
The M5StickC Plus2 is designed for convenience and flexibility, with a lightweight and portable design that makes it easy to carry around. The wristband accessory ensures that the device can be worn comfortably, while the USB Type-C cable (50cm) provides easy charging and data transfer. The HY2.0-4P interface on the bottom of the M5StickC Plus2 allows for seamless connection to the M5Stack ecosystem, enabling the use of various sensors for customized functions. The 8P@2.54mm expansion interface on the top of the device facilitates direct connection to M5Stack hats, offering even more possibilities for development.
**Adaptable and User-Friendly**.
The M5StickC Plus2 is not just a timepiece; it is a smartwatch that adapts to your lifestyle. It can be used for monitoring physical activity and smart home control, making it a versatile tool for everyday use. The M5Stack official M5StickC PLUS2 with watch accessories is user-friendly, with a straightforward setup process and an intuitive interface. Whether you're a tech enthusiast or someone looking for a smartwatch that does more, this device is a perfect fit. Its battery capacity of 200mAh ensures that it can keep up with your active lifestyle without frequent recharging. The included adapter compatible with LEGO and the wall/1515 mount provide additional convenience for users who want to keep their M5StickC Plus2 securely in place.
