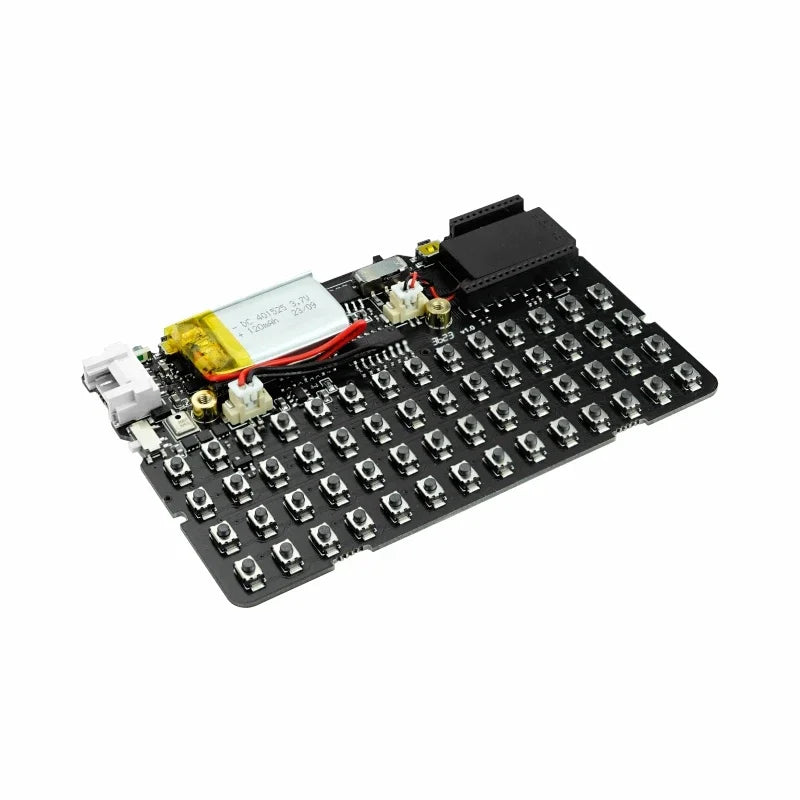

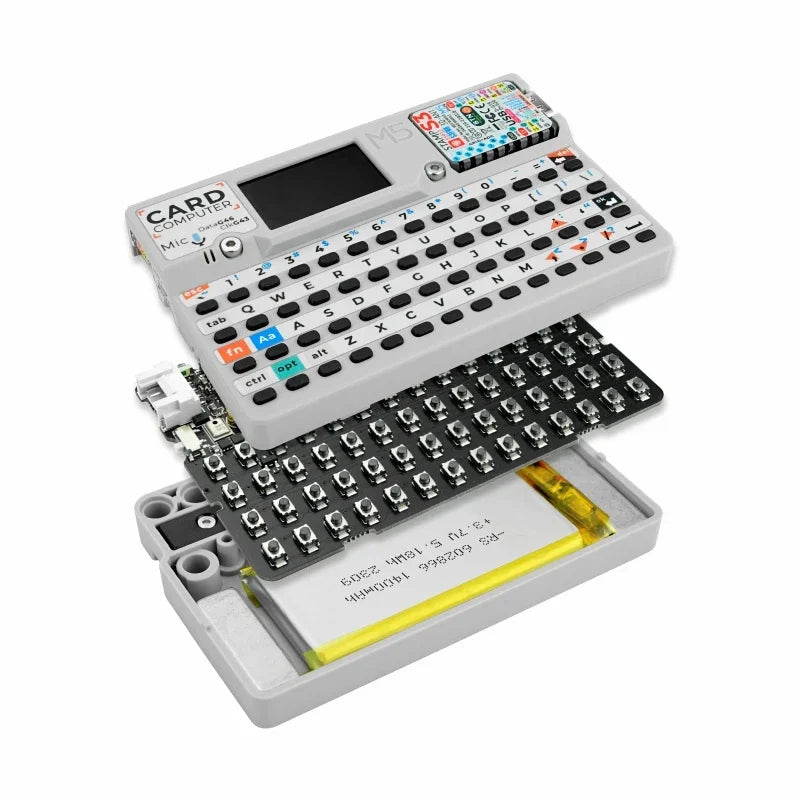

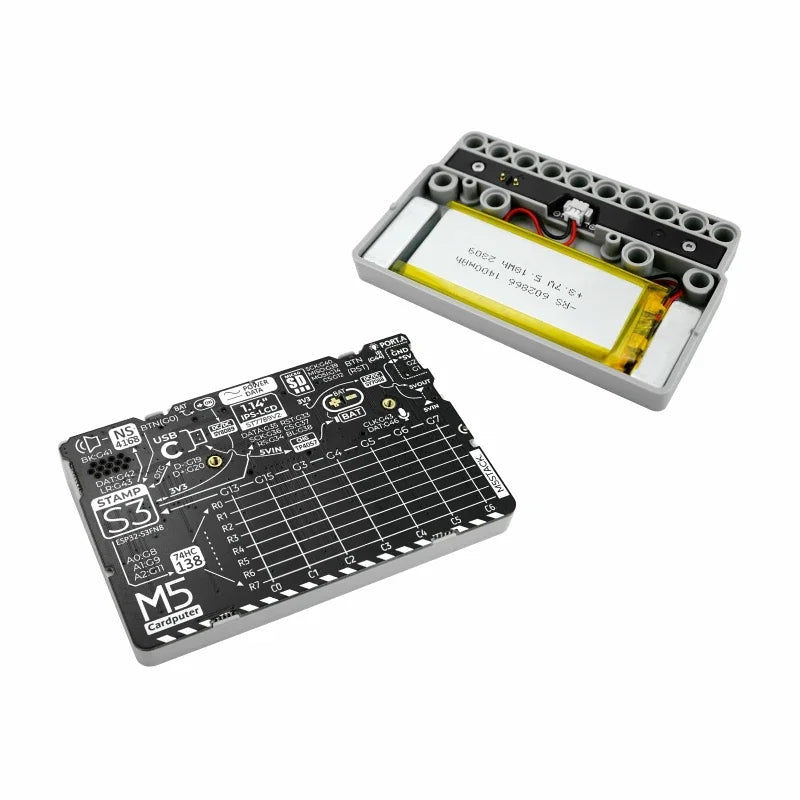

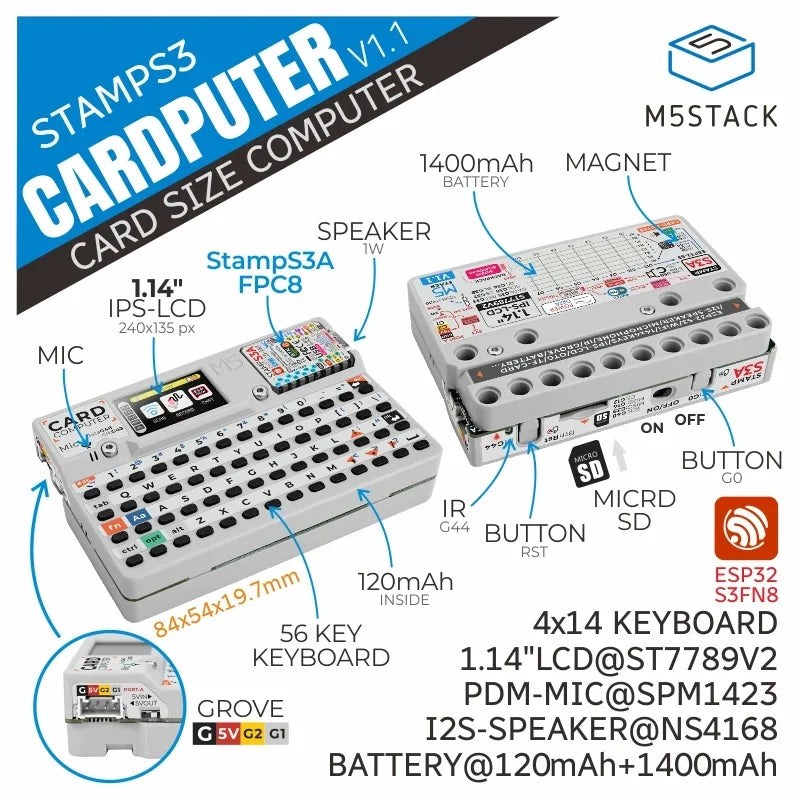

Cardputer v1.1 is a high-performance card computer designed for engineers, comprehensively upgraded from the original Cardputer. The new version features an all-new StampS3A microcontroller and optimized core module antenna and keys, significantly enhancing system stability and user experience. In terms of control and interaction, the product is equipped with a 56-key keyboard and a 1.14-inch TFT screen for efficient display and operation; the onboard SPM1423 digital MEMS microphone supports recording and wake-up functions and outputs audio via an integrated cavity speaker; additionally, an infrared emitter provides external infrared control capabilities. For expanded functionality, a built-in Grove interface facilitates custom sensor expansion; storage is enhanced with a Micro SD card slot for easy expansion of storage space. The power system employs an internal 120mAh battery alongside a 1400mAh battery in the base, integrating lithium battery charging and boost/buck circuits to greatly extend battery life. Structurally, the base is equipped with magnets for metal adhesion and is compatible with LEGO stud expansion. This product is widely applicable for rapid functional verification, industrial control, home control systems, and various other application scenarios.

Note

LCD and RGB LED Usage Precautions

Because the RGB LED and LCD backlight share the same power supply, the RGB function cannot be properly powered when the LCD backlight brightness is below 100%. Please use the RGB function with the backlight at full brightness.

Features

*StampS3A microcontroller *56-key keyboard *1.14-inch TFT screen *Cavity speaker and SPM1423 digital MEMS microphone *Infrared emitter for infrared control interaction *HY2.0-4P interface *Micro SD card slot *Built-in 120mAh and base 1400mAh lithium batteries *Base with magnets *Compatible with LEGO stud expansion *Development Platforms ----Arduino ----UIFlow 2.0 ----ESP-IDF

Includes

1 x Cardputer V1.1 1 x L-shaped 1.5mm hex key (for M2 screws)

Applications

Rapid functional verification and prototyping Industrial control and automation Home control systems Data acquisition and sensor monitoring Embedded system development and learning Wireless communication and IoT projects

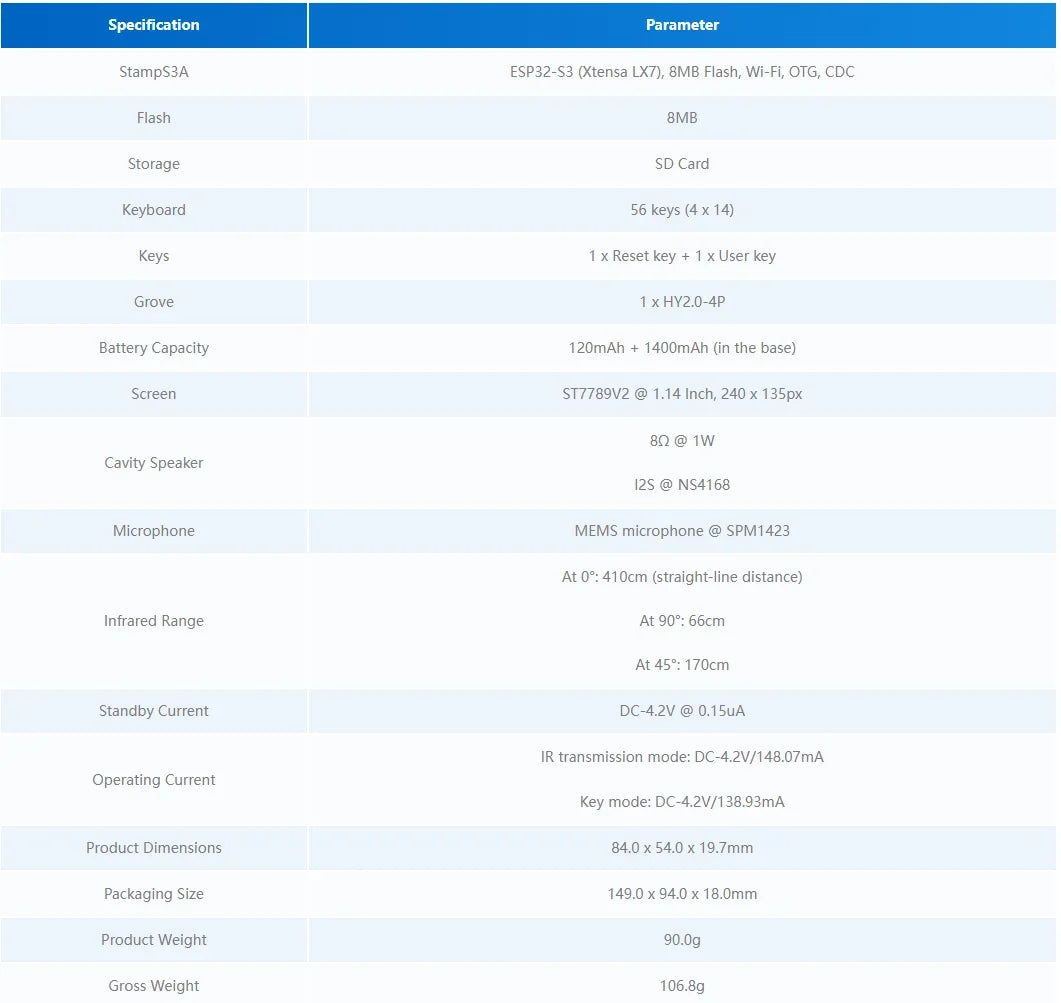

Specifications

Learn

Download Mode To enter download mode, hold down the G0 key on the side of the Cardputer v1.1 before powering on the device. After powering the device from the back, release the key, and the device will enter download mode. Charging Notice When charging the Cardputer v1.1, please switch the power button to "ON". Dismantling Precautions When removing the StampS3A from the panel, be careful with the FPC cable and connector on the back—gently pull them out to avoid damaging the screen connector socket. Please refer to the operation video in the Cardputer Accessory Kit for guidance.

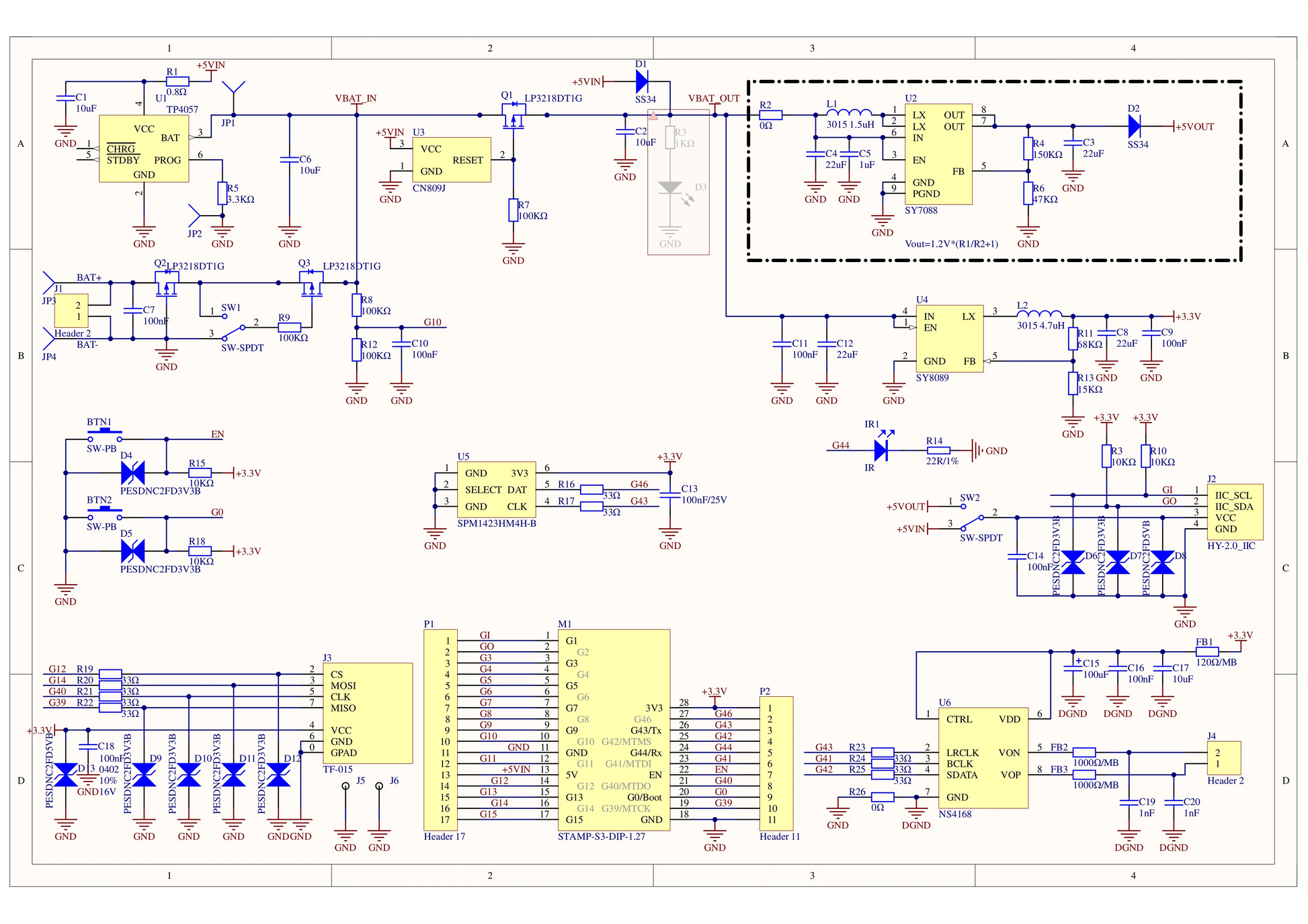

Schematics

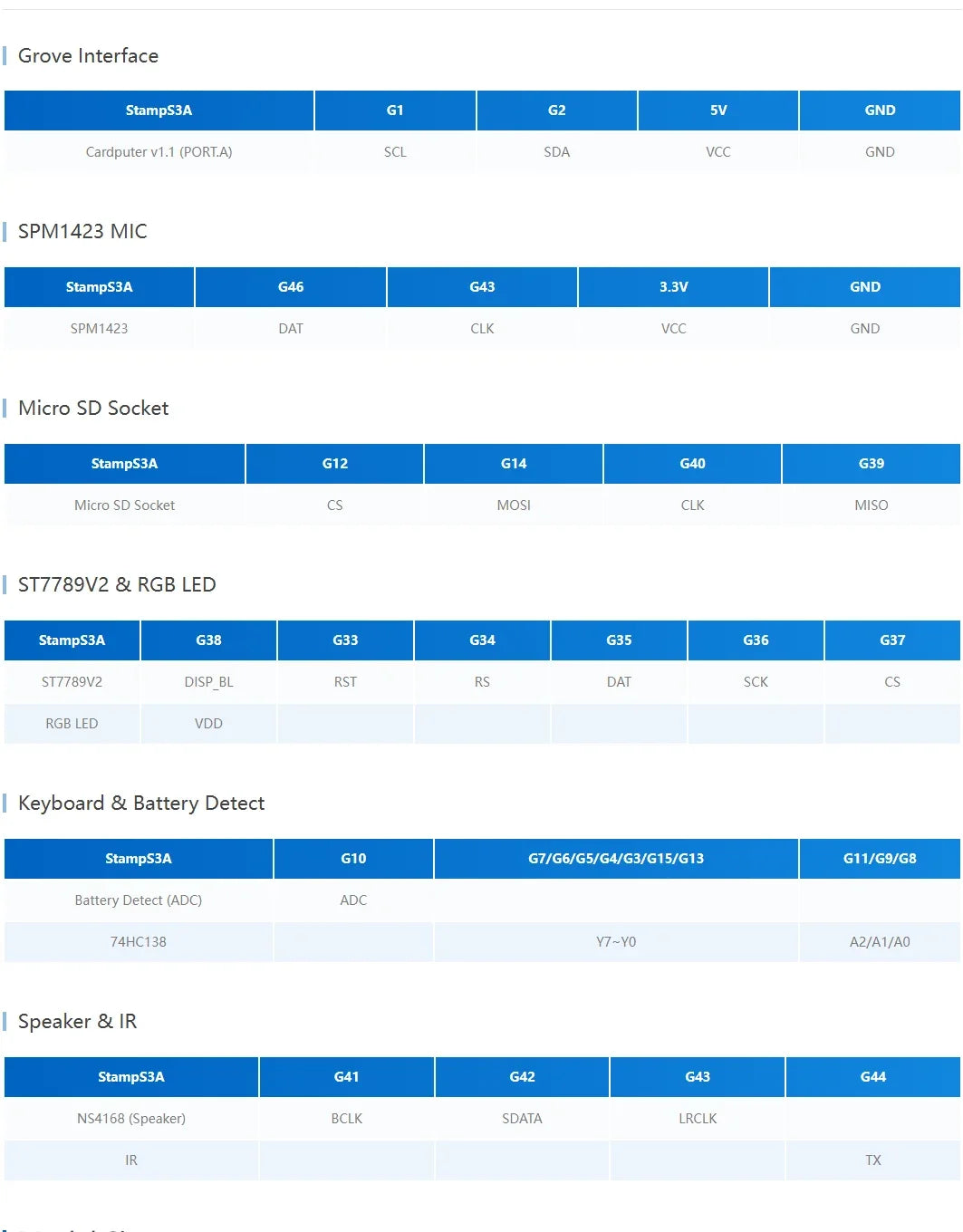

Pinmap

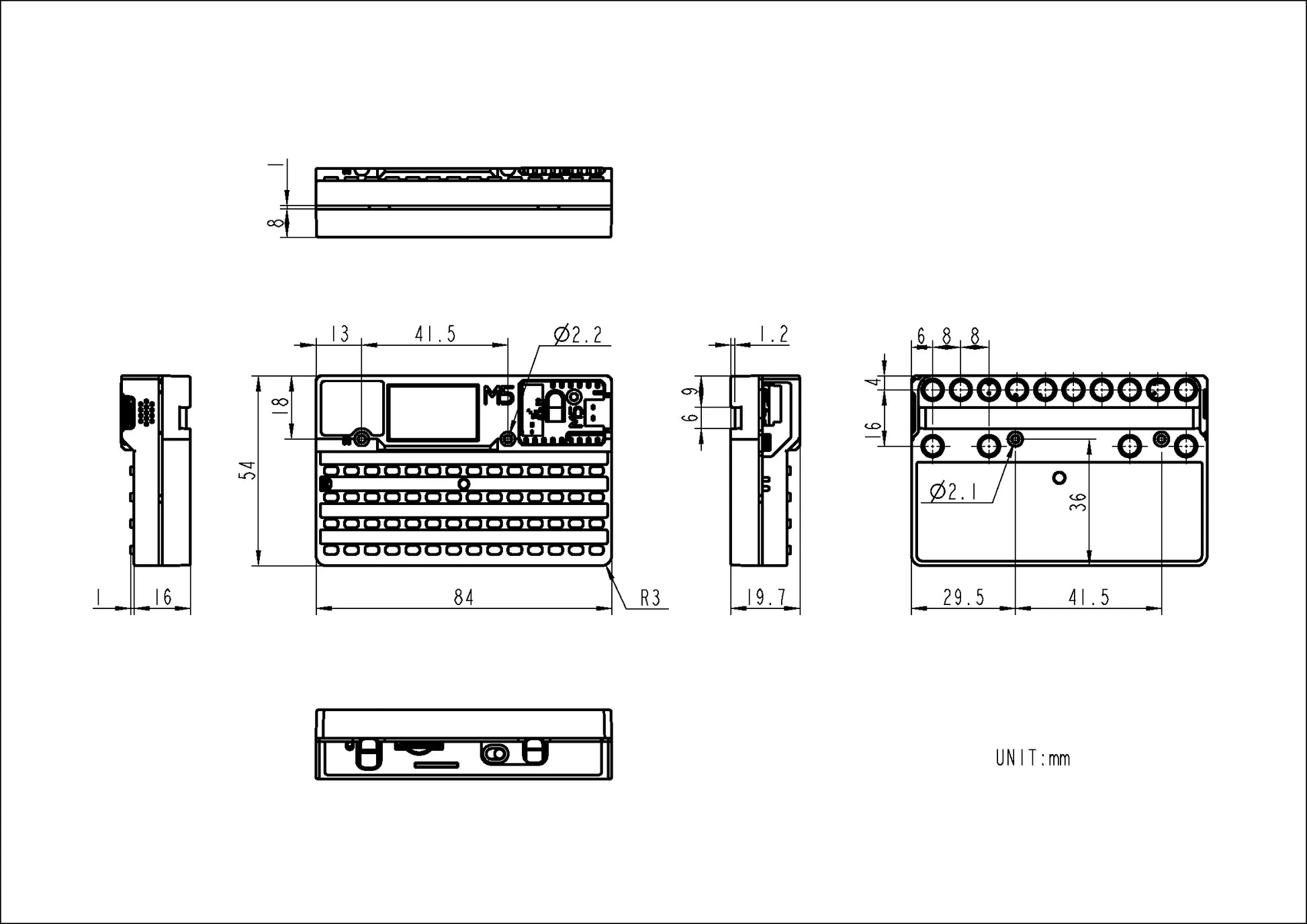

Model Size

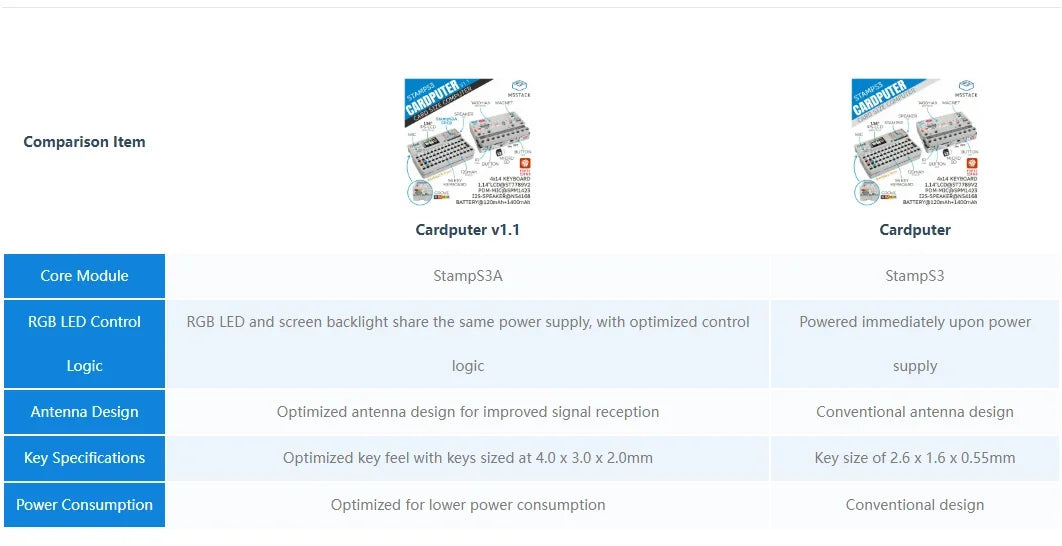

Product Comparison
