M5Stack Atomic Echo Base Voice Recognition Base for The M5 Atom Series Applications AI Voice Recognition Interactive Systems

$53.77 USD

~~$0.00 USD~~ $53.77 USD

Sale Sold out

Shipping calculated at checkout.

Bundle Atomic Echo Base

Quantity

SPECIFICATIONS

Brand Name: M5Stack

Camera Equipped: No

Certification: CE,RoHS

Choice: yes

Communication method: other

Compatibility: others

Hign-concerned Chemical: None

Model Number: Atomic Echo Base

Origin: Mainland China

State of Assembly: Ready-to-Go

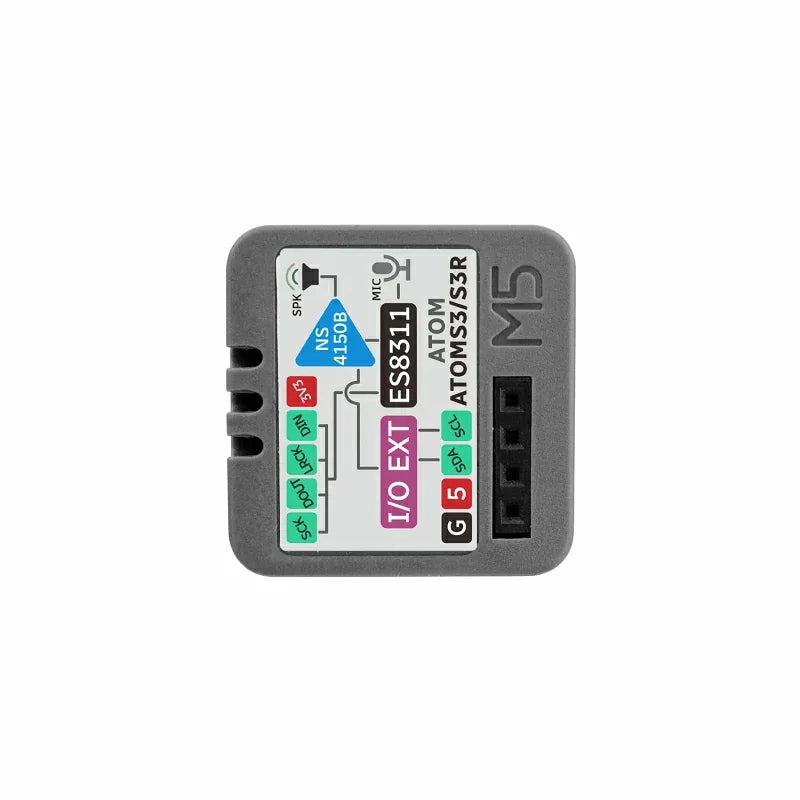

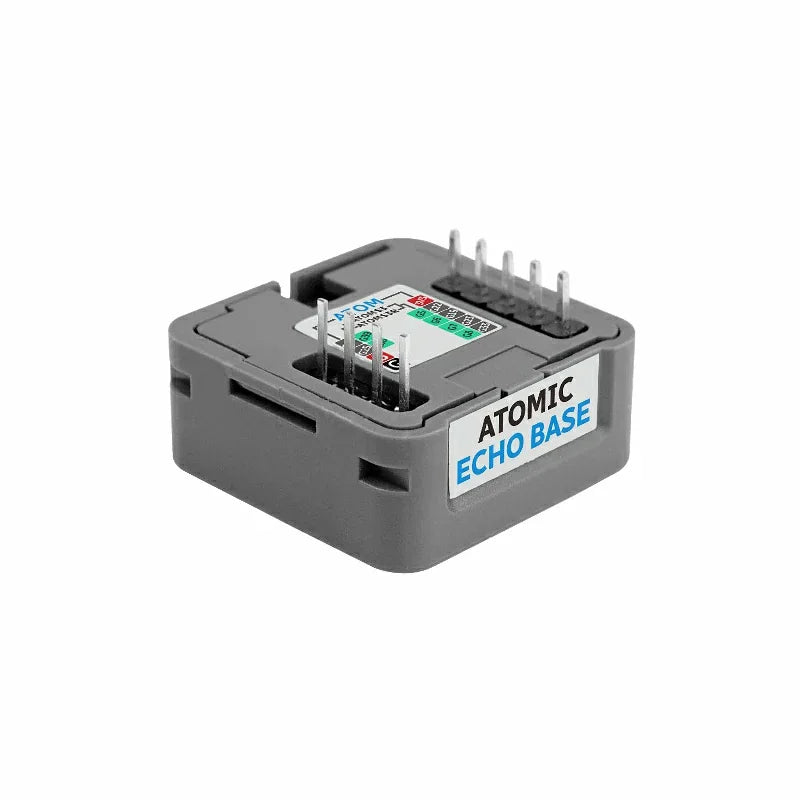

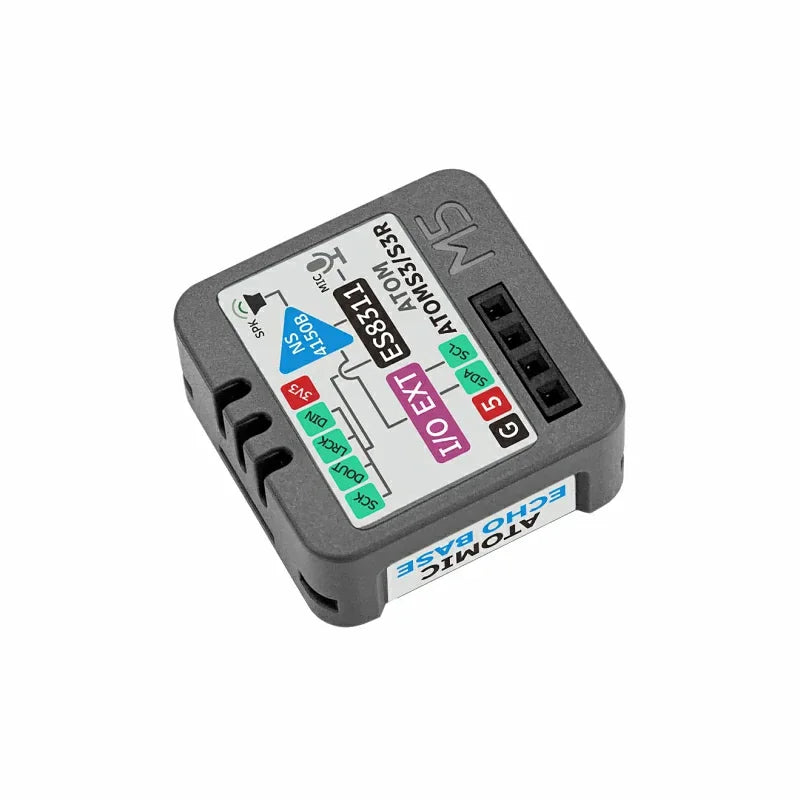

M5Stack Atomic Echo Base

Product Features

Compatible with the M5 Atom series
Voice recognition
Mono audio codec
MEMS microphone
Class-D amplifier
Speaker
Development platform
UIFlow 1.0
UIFlow 2.0
Arduino IDE

Applications

AI voice recognition interactive systems
Smart home control

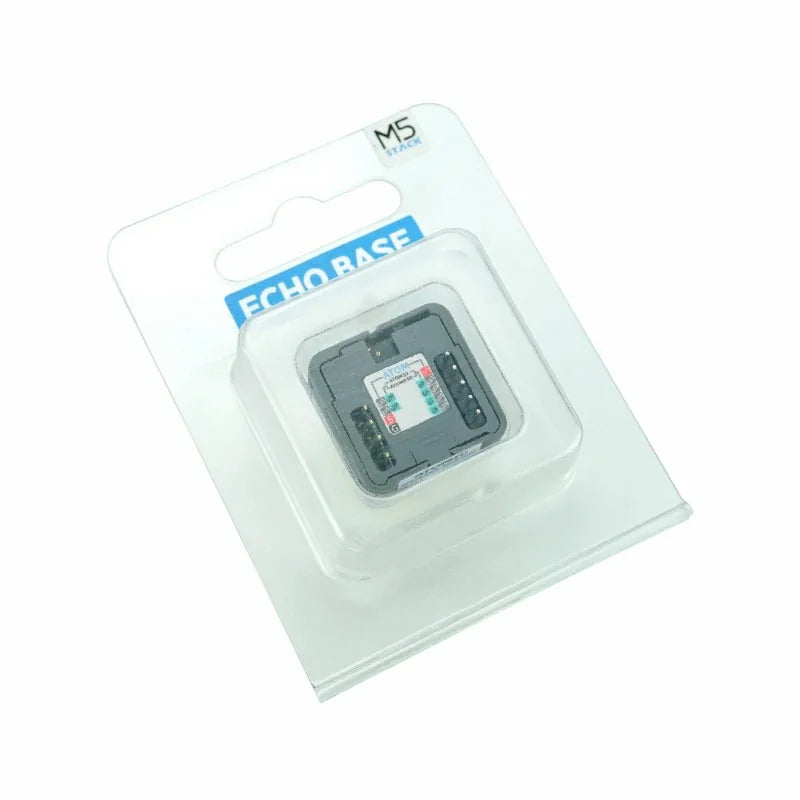

Package Includes

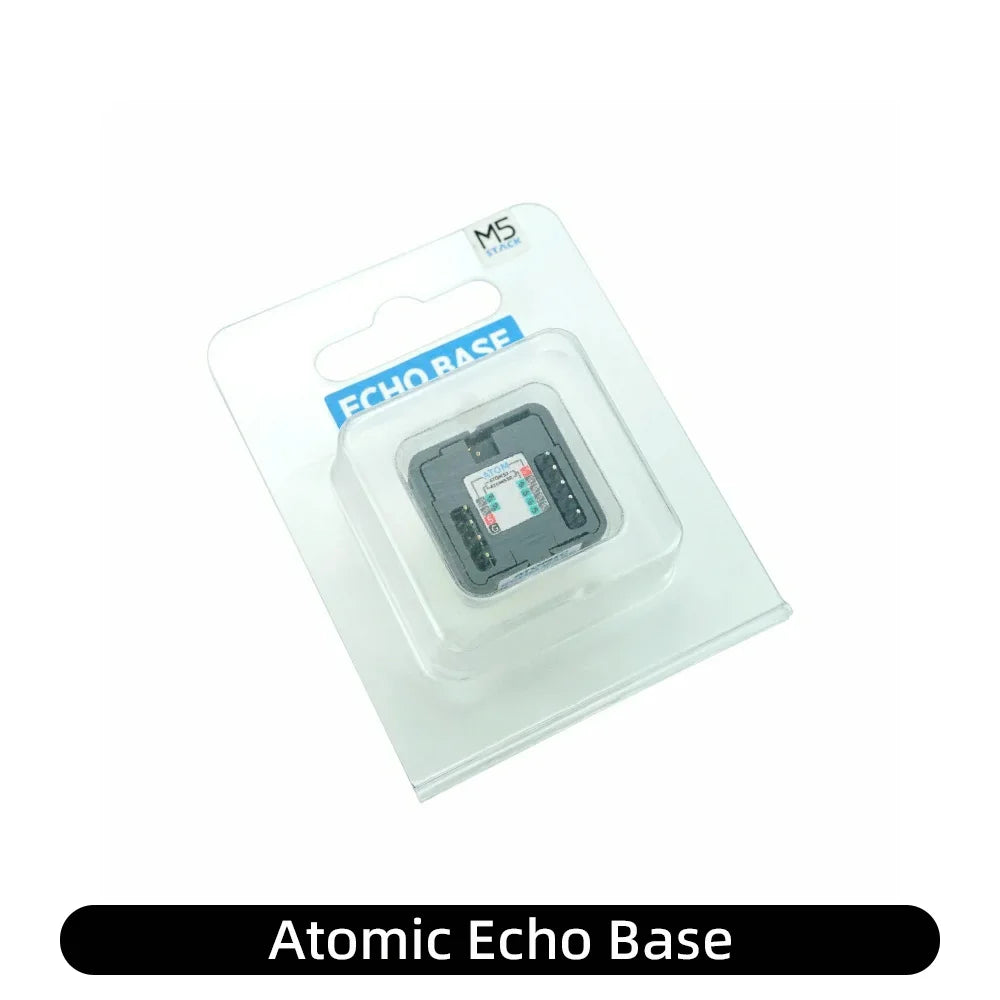

1x Atomic Echo Base

Specification

Specification Parameter

Audio Codec: ES8311: 24-bit resolution, I2S protocol

MEMS Microphone: MSM381A3729H9BPC, SNR ≥ 65 dB

Power Amplifier: NS4150B: Class-D power amplifier

Speaker: 2014-type cavity speaker: 1W@8Ω

Standby Current: DC3.3V/3.36mA

Operating Current: DC3.3V/14.84mA

Operating Temperature: 0-40°C

Product Size: 24.0 * 24.0 * 14.14mm; Packaging Size: 85.0 * 65.5 * 15.0mm

Packaging Weight: 12.5g; Product Weight: 6.3g

Please note:

MIC Sampling Rate

The Atomic Echo Base microphone supports a sampling rate range of 16KHz-64KHz.

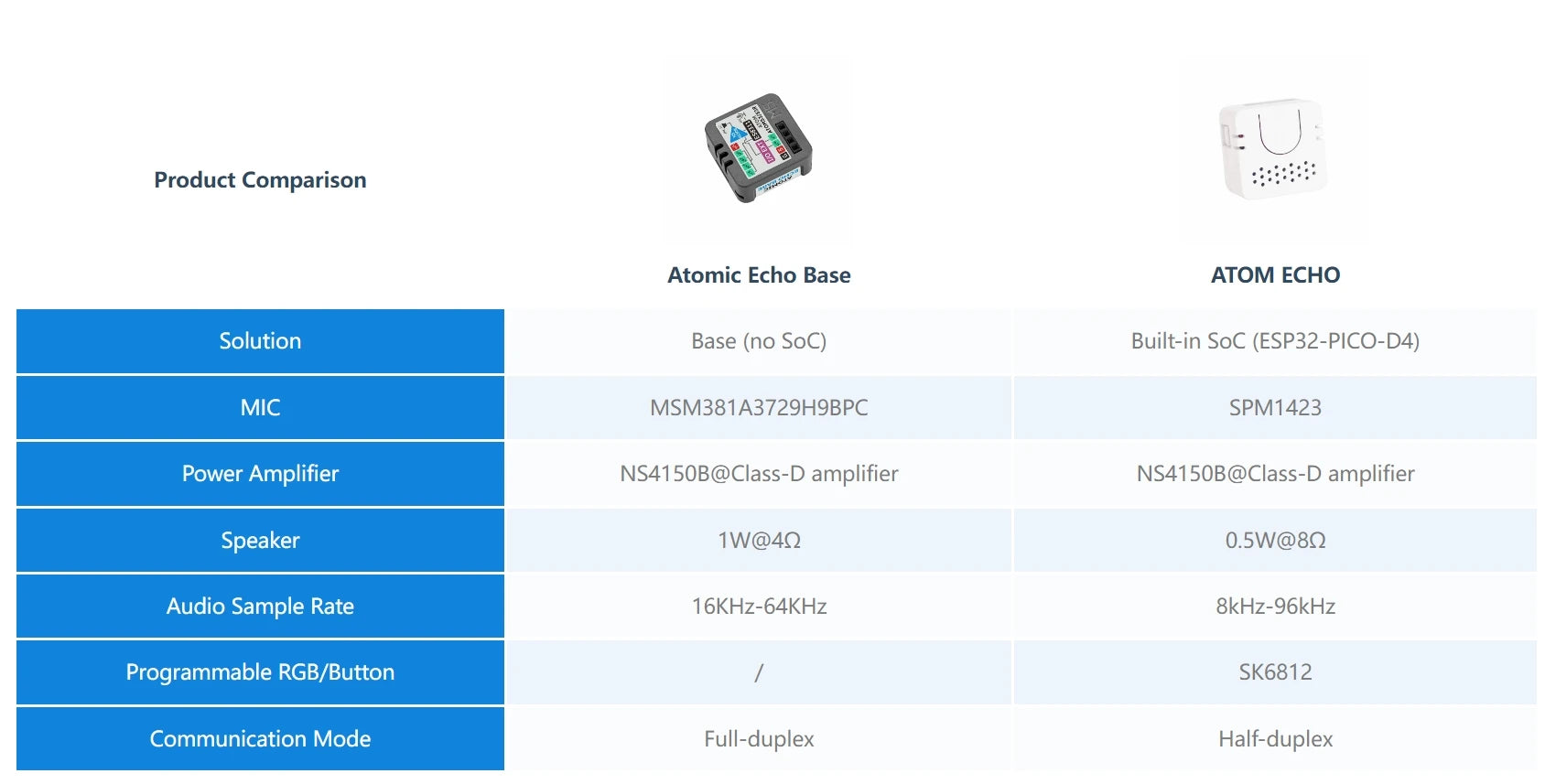

Product Comparison

Product details

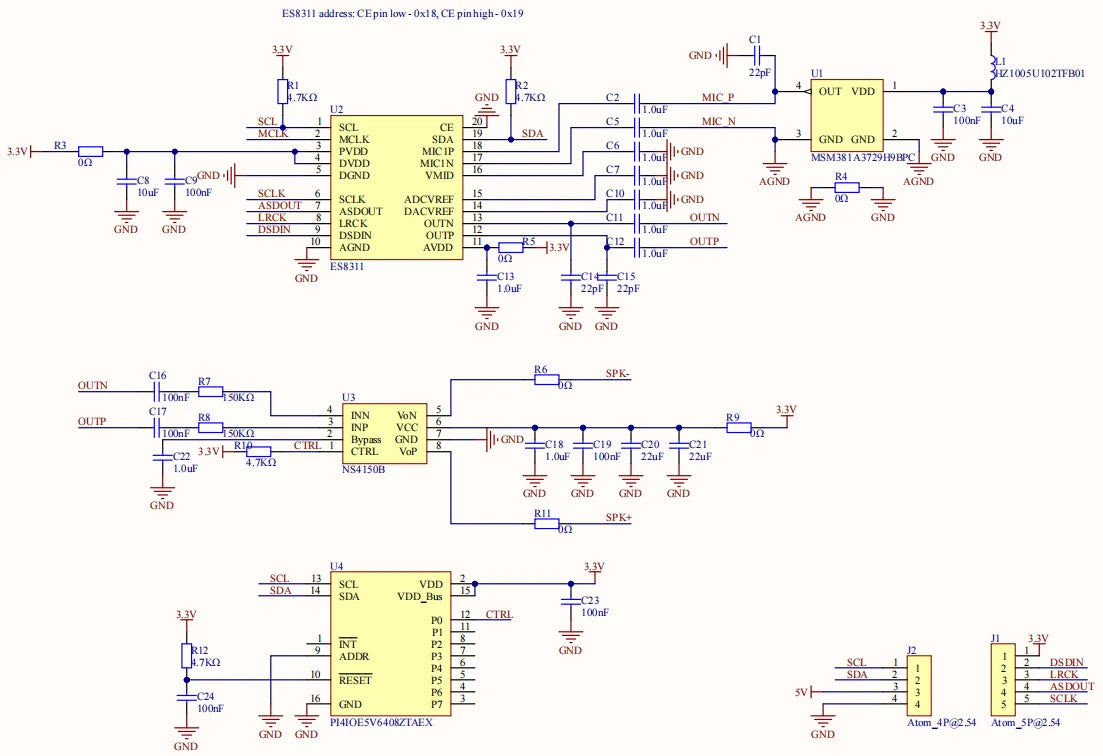

Schematics

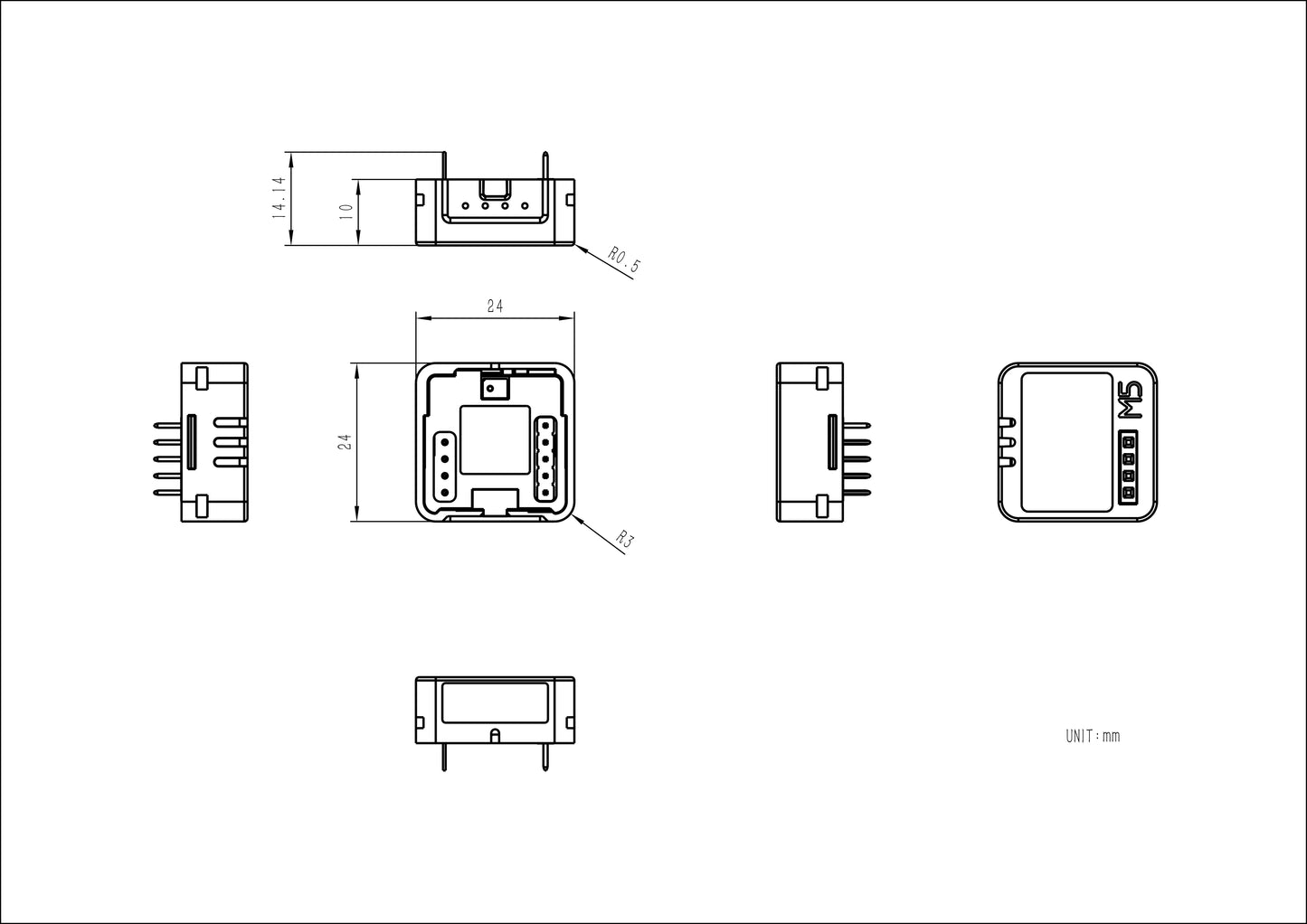

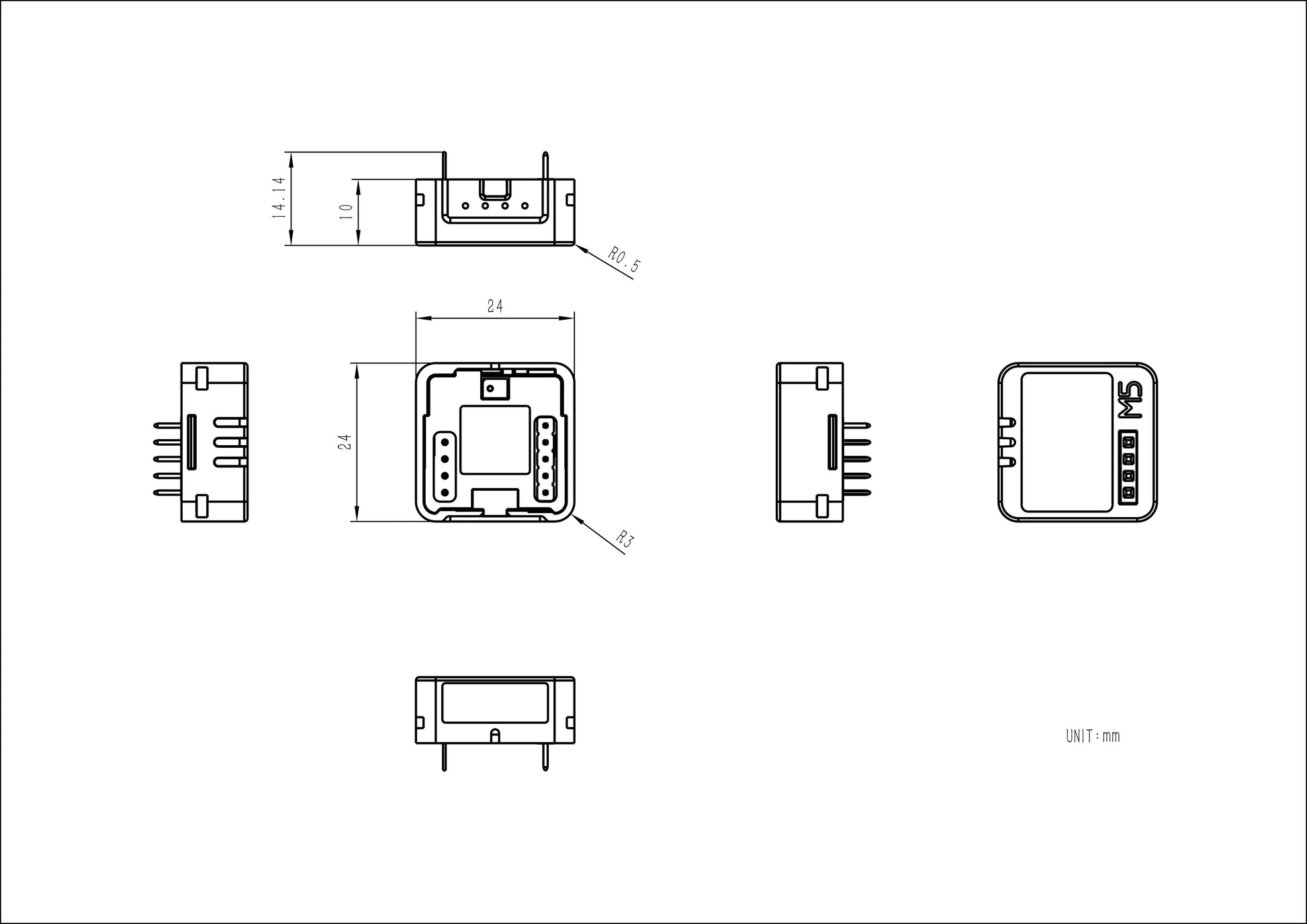

Module Size

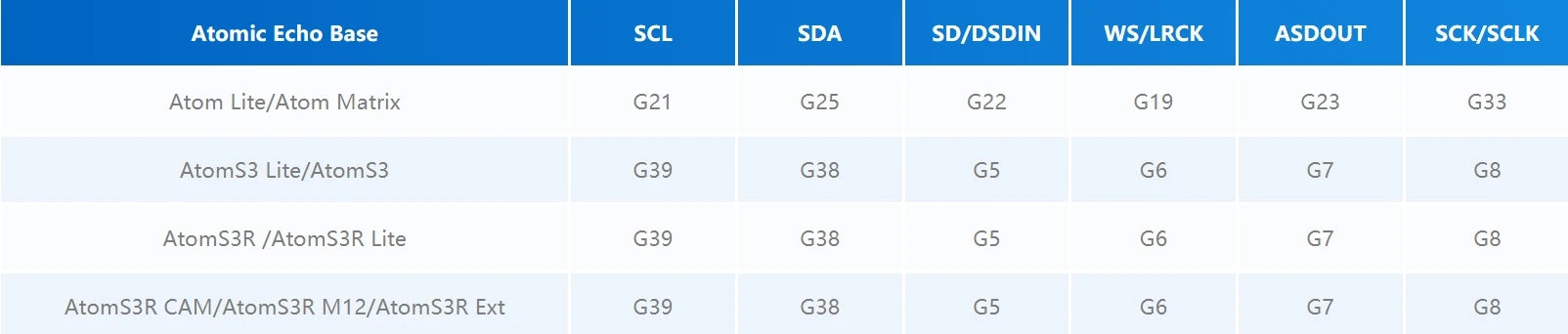

PinMap

Product Description

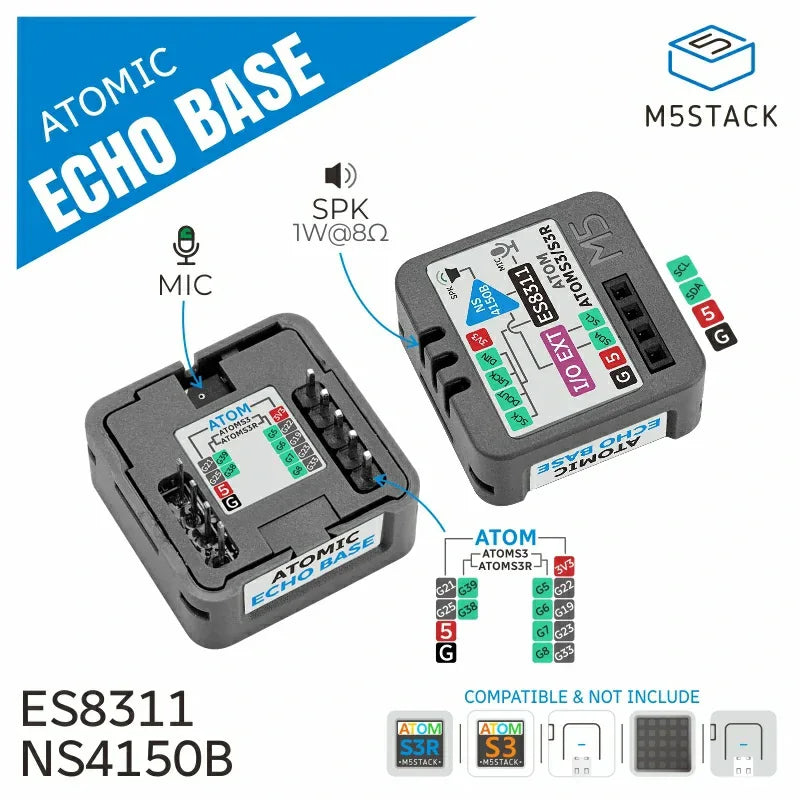

The Atomic Echo Base is a voice recognition base designed specifically for the M5 Atom series. It uses an integrated solution with the ES8311 mono audio decoder, MEMS microphone, and NS4150B power amplifier. The ES8311 offers 24-bit audio resolution and a sample rate of 16KHz to 64KHz, supporting I2S communication and high-fidelity audio processing. The MEMS microphone with high signal-to-noise ratio (SNR) is suitable for automatic speech recognition, while the built-in speaker ensures efficient audio output. The device supports full-duplex communication, enabling simultaneous voice transmission and reception, enhancing interactive features such as speech recognition, wake-up, and audio playback. It is ideal for applications in smart homes and education.
