For M5Stack StickC Plus1.1 and 2 Compatible RF Module CC1101+NRF24 | Dual Frequency 433MHz+2.4GHz | Bruce Firmware Installed
For M5Stack StickC Plus1.1 and 2 Compatible RF Module CC1101+NRF24 | Dual Frequency 433MHz+2.4GHz | Bruce Firmware Installed
Couldn't load pickup availability
SPECIFICATIONS
Accessories Type: Motherboard
Brand Name: DKXBE
Choice: yes
Compatible Brand/Model: None
Electric: No
Hign-concerned Chemical: None
Model Number: RF 2-in-1 Module
Origin: Mainland China
With USB: No
semi_Choice: yes
M5STACK STICKC PLUS RF MODULE
This dual-mode RF development board is specially designed for the M5Stack StickC Plus, integrating both A01-S2G4A00S2A (2.4GHz NRF24) and A07-S433A10S2A (433MHz CC1101) modules. Fully compatible with Bruce firmware, it features a plug-and-play design and supports both short-range and long-range wireless communication, making it ideal for IoT, wireless control, and RF development projects.
Key Features:
✅ Dual-module design: Supports both NRF24 (2.4GHz) and CC1101 (433MHz) communication
✅ Tailored for M5Stack StickC Plus, plug-and-play
✅ Bruce firmware compatible, no complex setup required
✅ High-performance RF communication for reliable data transmission
✅ Physical switch for easy module selection
Module Details:

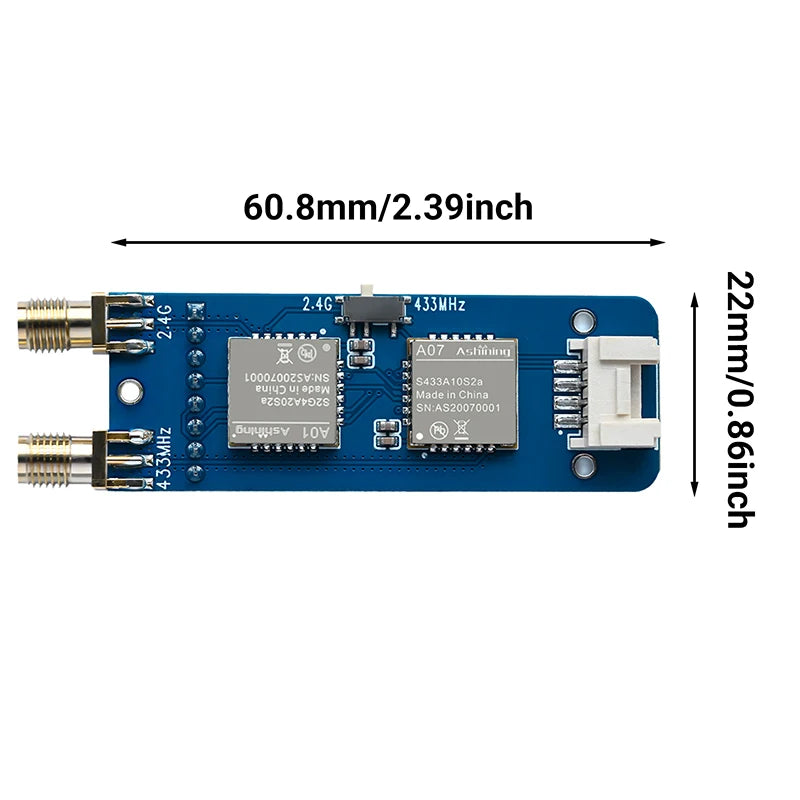

2.4GHz NRF24 Module (A01-S2G4A00S2A): Stable, high-speed short-range wireless communication
433MHz CC1101 Module (A07-S433A10S2A): Low-power, long-range RF transmission
Reliable performance with optimized signal layout and power design

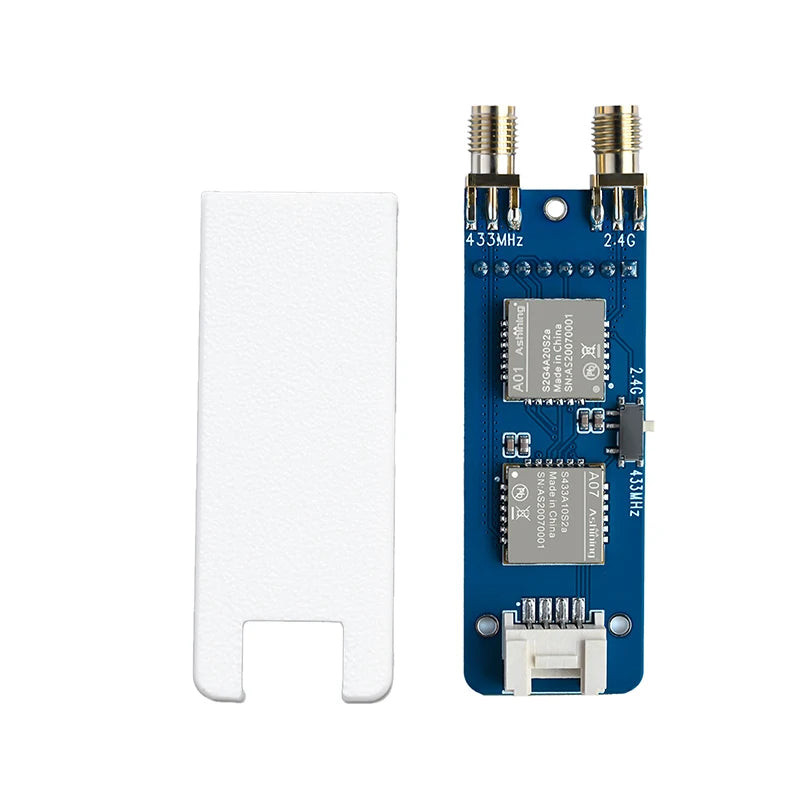

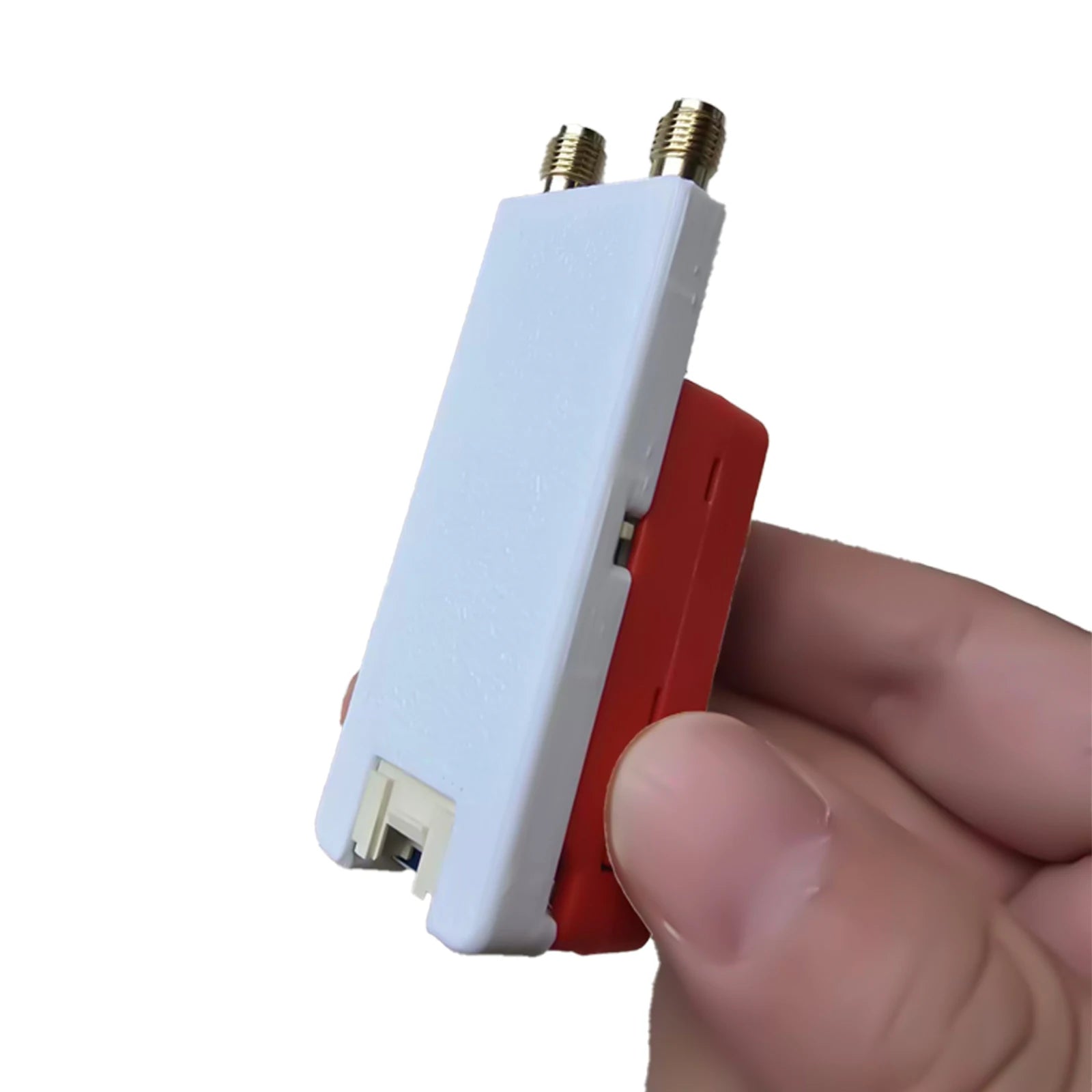

3D Printed Case (Optionally Available)
Usage Instructions
1. Flash Bruce Firmware (First-Time Setup)
To use this board with StickC Plus, first flash the Bruce firmware:
Go to the official flasher: https://bruce.computer/flasher
Follow the instructions to select the correct device (StickC Plus v1.1/v2) and complete the flashing process
2. Hardware Connection

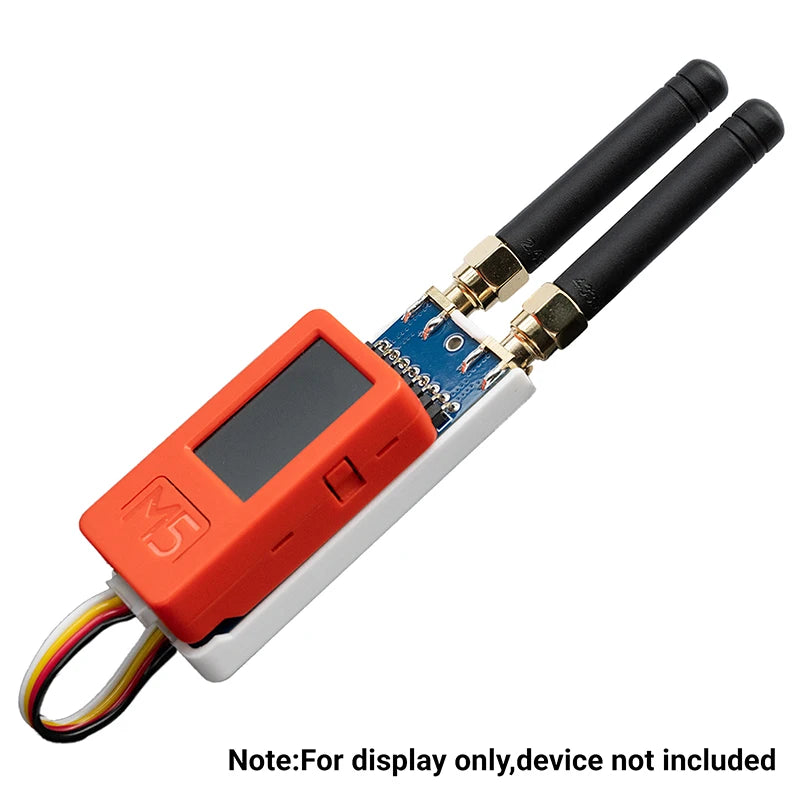

Connect the RF board to the M5Stack StickC Plus using the Grove cable or GPIO jumper wires
The GPIO pinout is pre-configured and compatible with Bruce firmware
3. Switching Between Modules
This board includes a physical switch to toggle between the two RF modules:
To use the CC1101 (433MHz) module:
1. Toggle the switch to the 433MHz (CC1101) position
2. Navigate in the firmware: RF → CONFIG → RF MODULE
3. Select: CC1101 (legacy)
To use the NRF24 (2.4GHz) module:
1. Toggle the switch to the 2.4GHz (NRF24) position
2. Navigate in the firmware: NRF24 → CONFIG → Pins
3. Select: NRF24 (legacy)
4. Additional Documentation
For more advanced configuration and documentation, please refer to the official Bruce firmware Wiki:
🔗 https://github.com/pr3y/Bruce/wiki/
